• Durabed, pickup bed
• Air filter, heavy-duty
• Air filtration monitoring
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Recovery hooks, front, frame-mounted, Black
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Suspension Package
• Steering, Recirculating ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

• Wheels, 18" (45.7 cm) painted steel (Requires single rear wheels.)
• Tires, LT275/70R18E all-terrain, blackwall (Requires single rear wheels.)
• Tire, spare LT275/70R18 all-terrain, blackwall (Included and only available with (QF6) LT275/70R18E all-terrain, blackwall tires with (E63) Durabed, pickup bed single rear wheel models. Available to order when (ZW9) pickup bed delete and (QF6) LT275/70R18E all-terrain, blackwall tires are ordered with single rear wheel models)
• Single Rear Wheels
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumpers, front, Black
• Bumpers, rear, Black
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side (Deleted when (ZW9) pickup bed delete is ordered.)
• Moldings, beltline, Black
• Cargo tie downs (12), fixed, rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.)
• Front grille bar with "CHEVROLET" molded in Black includes Black mesh inserts with small Gold bowtie emblem.
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• Taillamps, with incandescent tail, stop and reverse lights (Note: Trucks equipped with dual rear wheels will feature LED signature tail and stop lamps, with incandescent reverse lamp.)
• Lamps, cargo area cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Mirrors, outside high-visibility vertical trailering lower convex mirrors, manual-folding/extending (extends 3.31" [84.25mm]), molded in Black
• Mirror caps, Black
• Glass, solar absorbing, tinted
• Door handles, Black grained
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection cap, top
• Tailgate, locking, utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCV) WT Convenience Package is ordered. Not available with (ZW9) pickup bed delete.) (Upgraded to (QT5) EZ Lift power lock and release tailgate when (ZLQ) WT Fleet Convenience Package or (PCV) WT Convenience Package is ordered. Not available with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no EZ Lift (Deleted with (ZW9) pickup bed delete.)

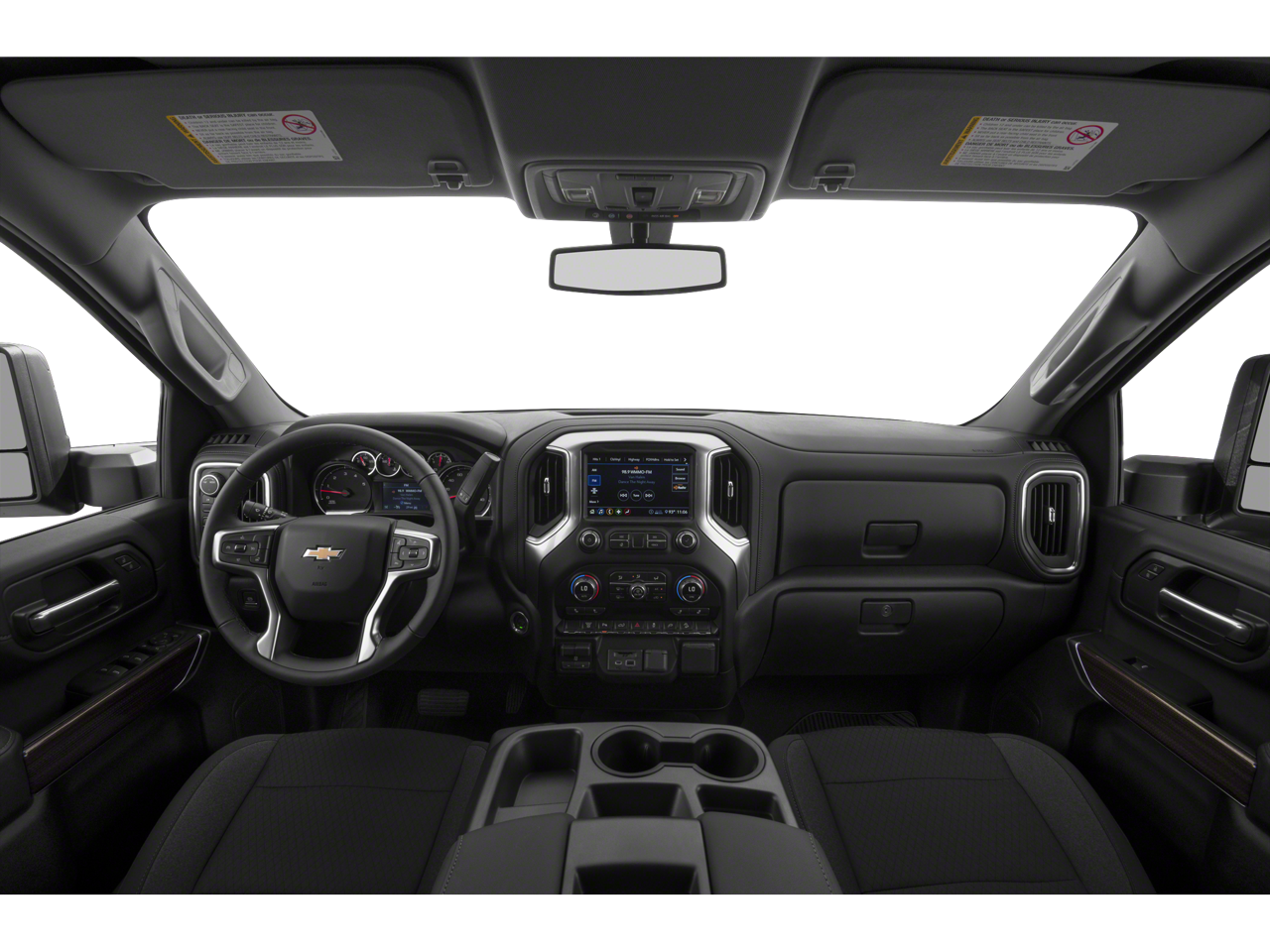

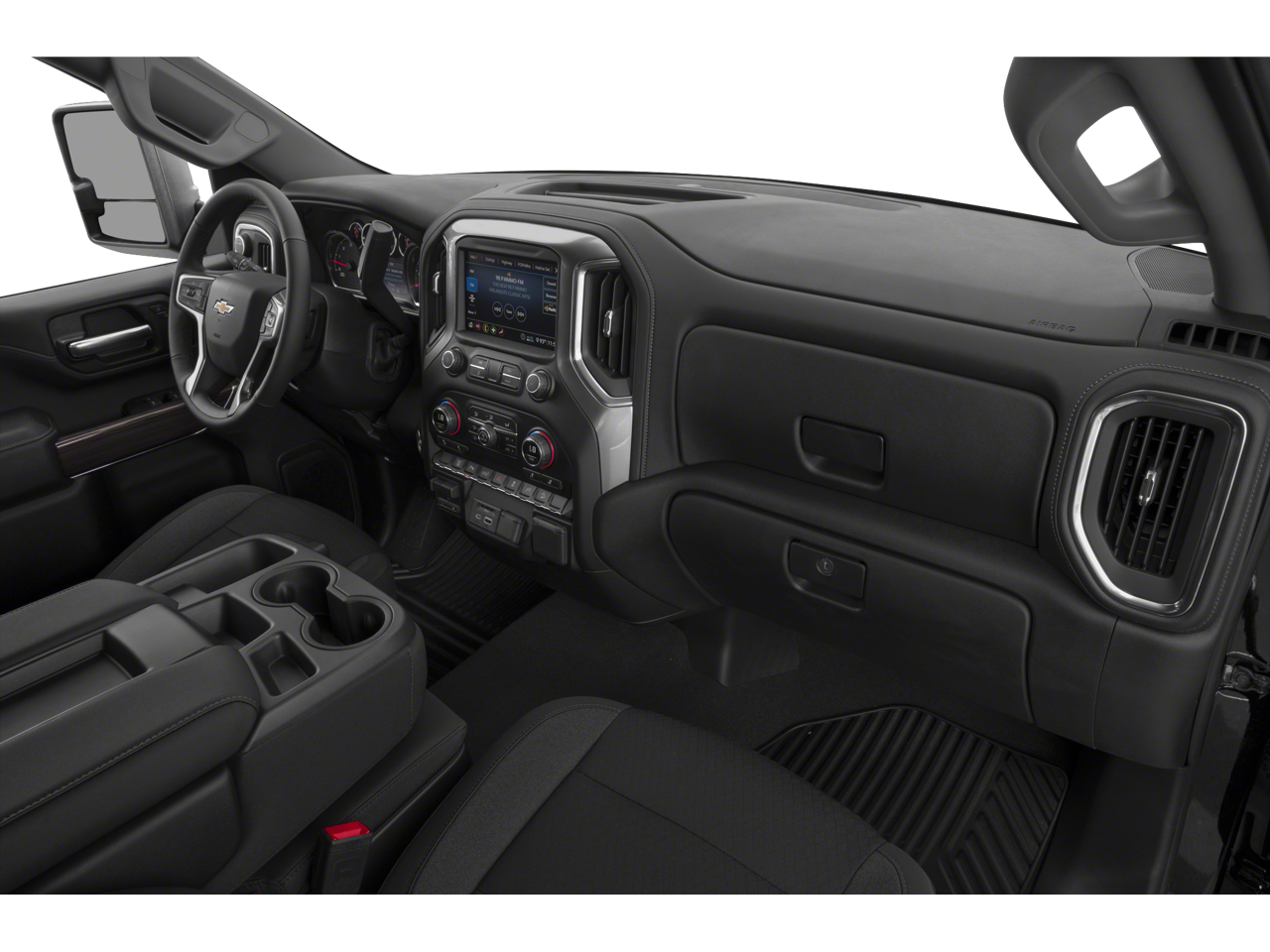

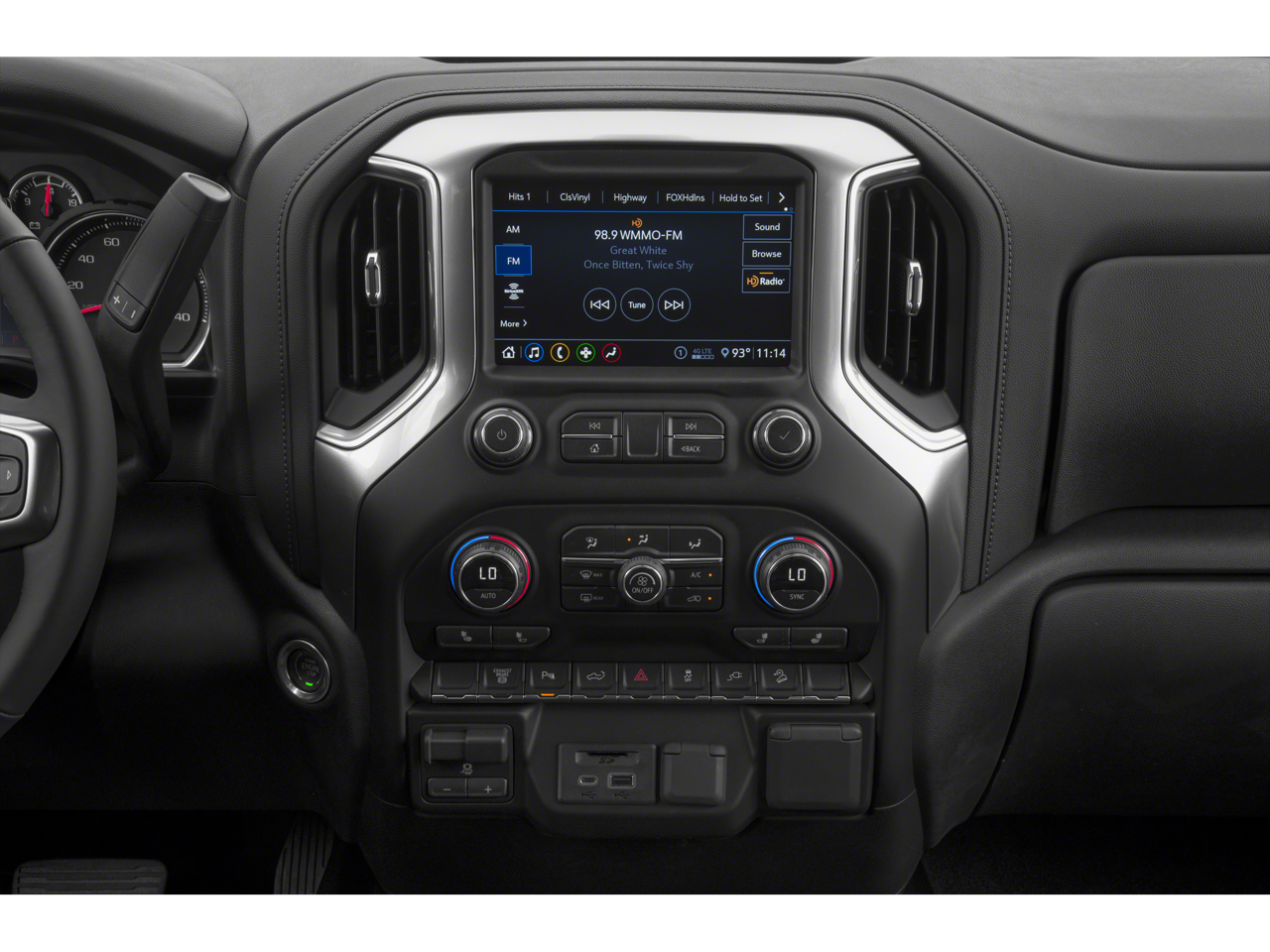

• Audio system, Chevrolet Infotainment 3 system, 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, wired Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone connectivity to vehicle infotainment system

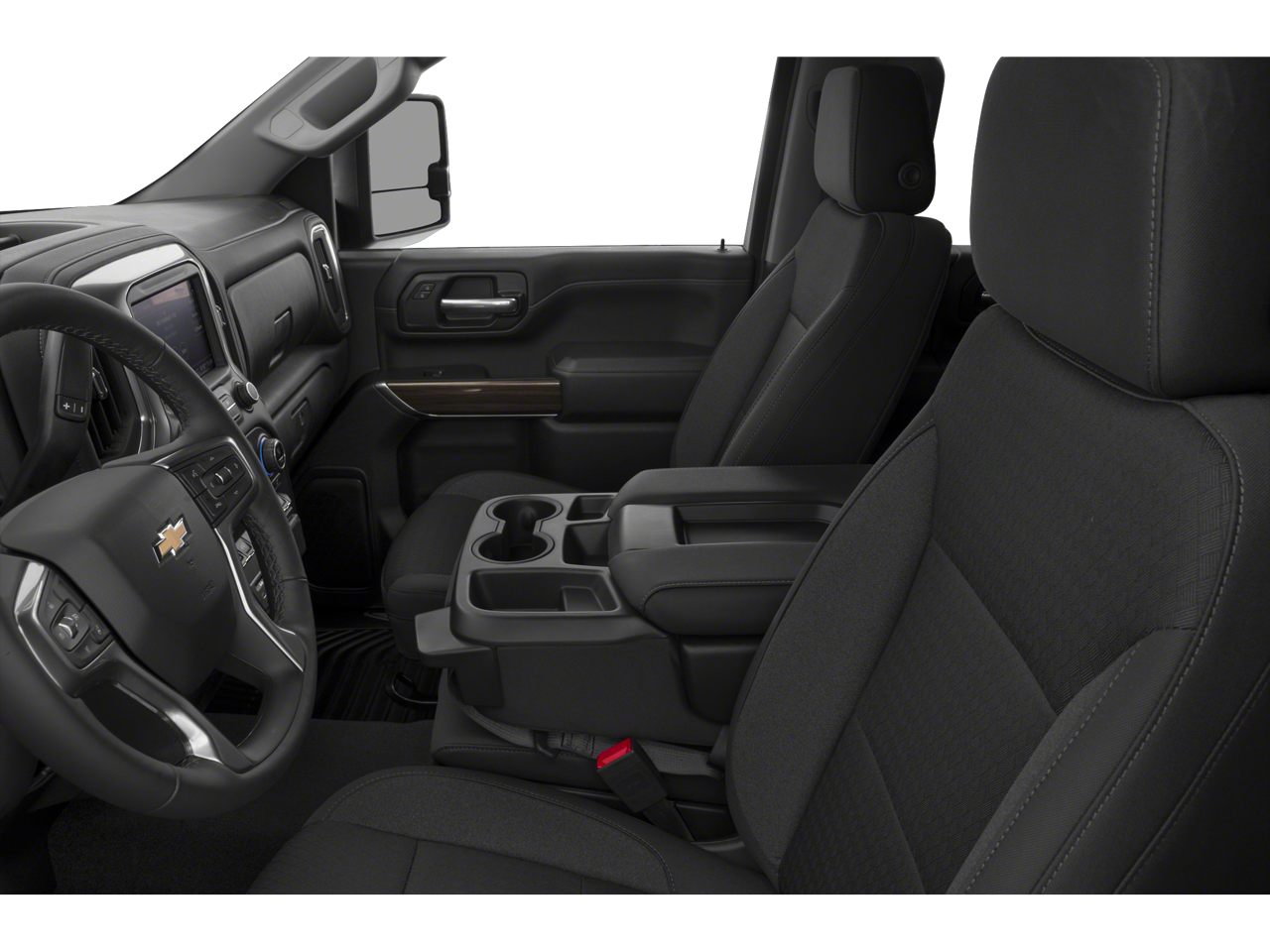

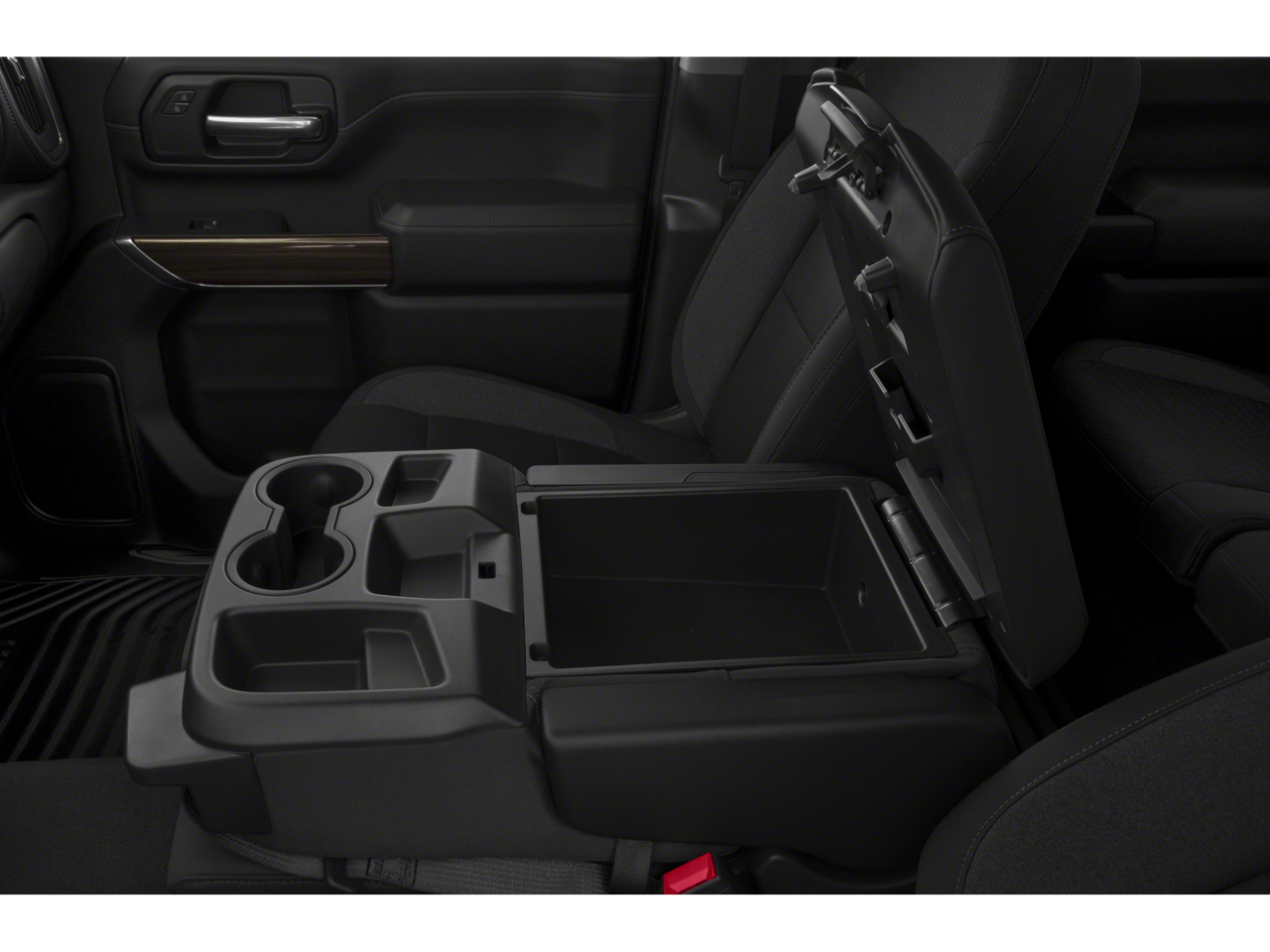

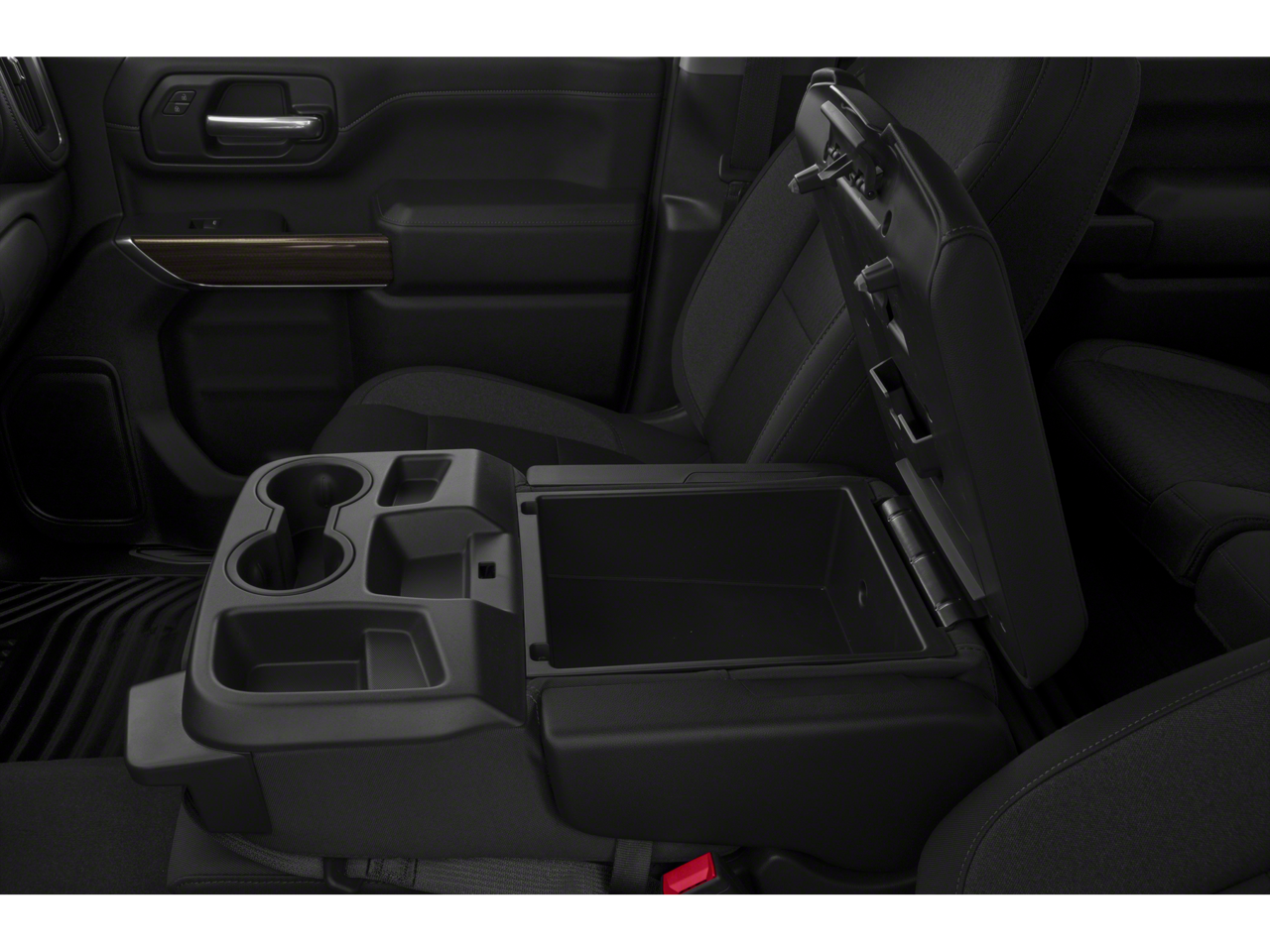

• Seats, front 40/20/40 split-bench with upper covered armrest storage with fixed lumbar
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

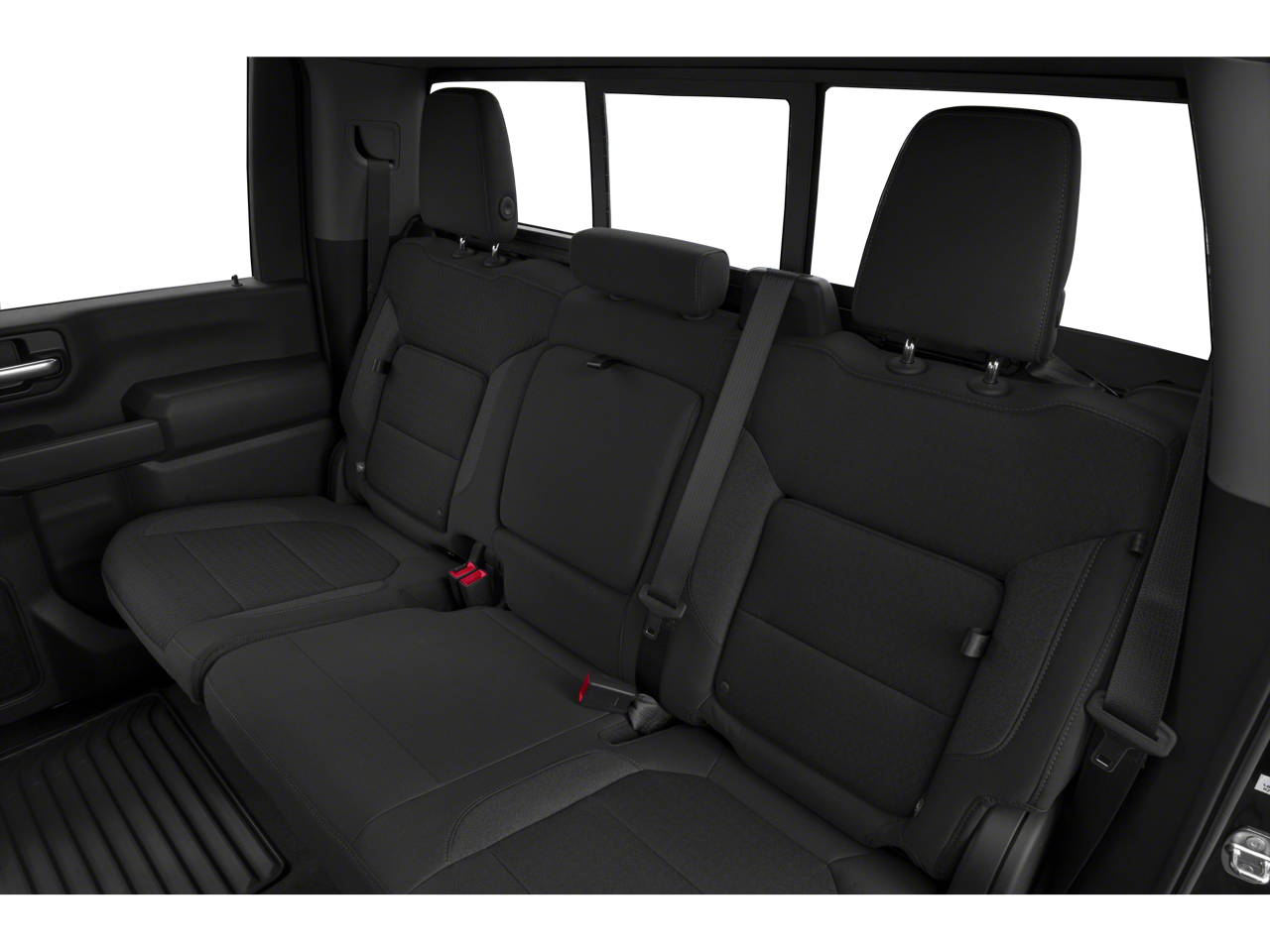

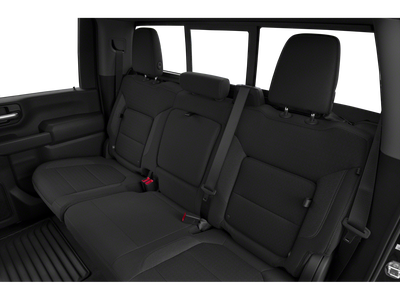

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab or Double Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature

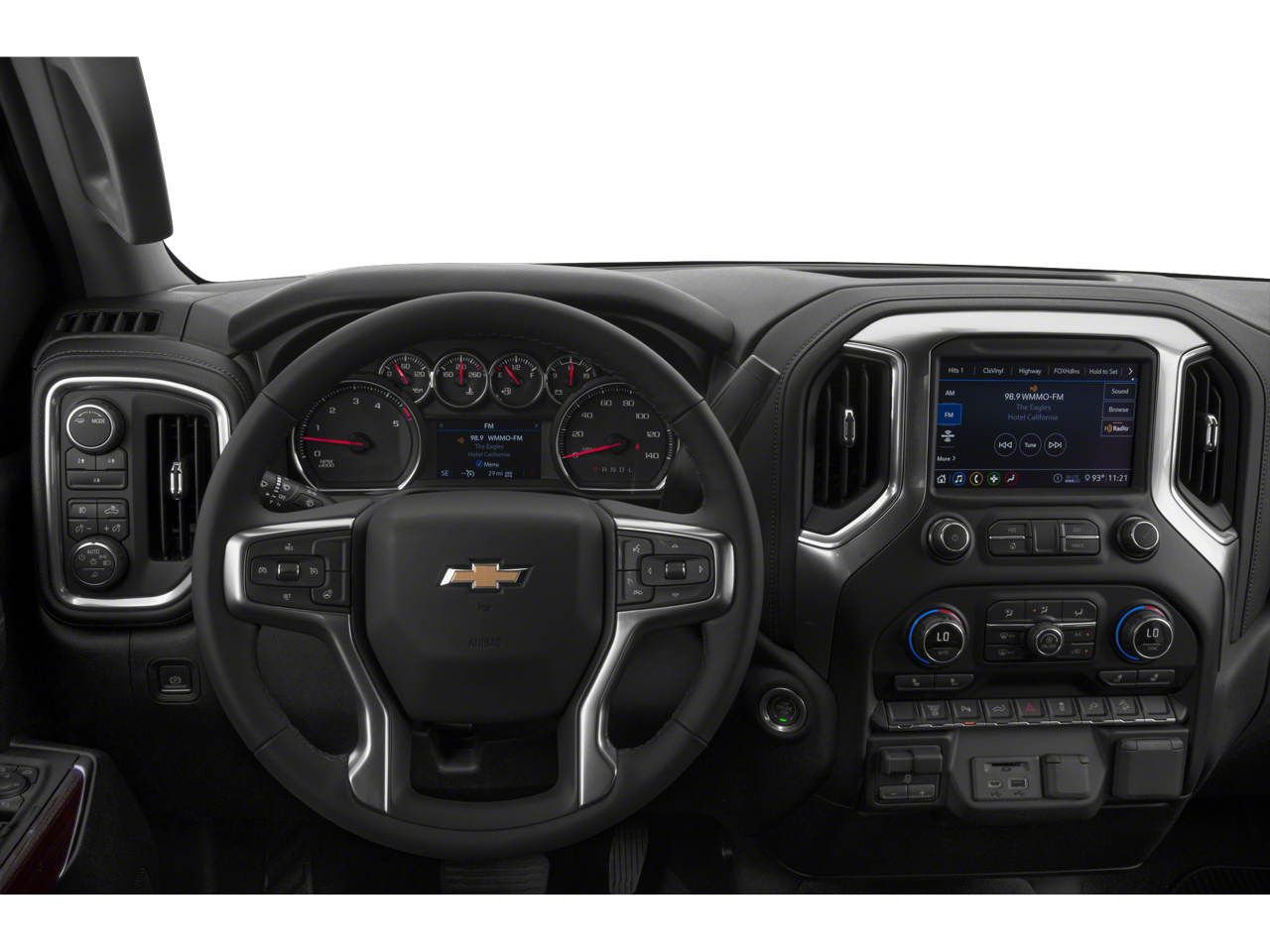

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Window, power front, drivers express up/down (Standard on Crew Cab and Double Cab models. On Regular Cab model, included and only available with (PCV) WT Convenience Package.) (Standard on Crew Cab and Double Cab models. On Regular Cab model, included and only available with (ZLQ) WT Fleet Convenience Package or (PCV) WT Convenience Package.)
• Window, power front, passenger express down (Standard on Crew Cab and Double Cab models. On Regular Cab model, included and only available with (PCV) WT Convenience Package.) (Standard on Crew Cab and Double Cab models. On Regular Cab model, included and only available with (ZLQ) WT Fleet Convenience Package or (PCV) WT Convenience Package.)
• Windows, power rear, express down (Not available with Regular Cab models.)
• Door locks, power (Standard on Crew Cab and Double Cab models. On Regular Cab models, included and only available with (PCV) WT Convenience Package.) (Standard on Crew Cab and Double Cab models. On Regular Cab models, included and only available with (ZLQ) WT Fleet Convenience Package or (PCV) WT Convenience Package.)
• Power outlet, front auxiliary, 12-volt
• USB ports, 2 (first row) located on instrument panel
• Air conditioning, single-zone
• Air vents, rear, heating/cooling (Not available on Regular Cab models.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera (Deleted with (ZW9) pickup bed delete.)
• Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available with (ZW9) pickup bed delete.)

WHEELS, 18" (45.7 CM) PAINTED STEEL

• (STD)

PICKUP BED, DELETE

• includes capped fuel fill
• (SFW) Back-up alarm calibration
• (9J4) rear bumper delete
• (9L3) spare tire delete and spare tire carrier delete.

SKID PLATES

• protect the oil pan
• front axle and transfer case

SNOW PLOW PREP/CAMPER PACKAGE

• includes (KW5) 220-amp alternator
• includes increased front GAWR on Heavy Duty models
• (NZZ) skid plates (transfer case and oil pan)
• pass through dash grommet hole and roof emergency light provisions.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• (STD)

REAR CAMERA KIT

• Kit includes camera
• fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com

TIRE, SPARE LT275/70R18 ALL-TERRAIN, BLACKWALL

• (STD)

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with upper covered armrest storage with fixed lumbar (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

LICENSE PLATE KIT, FRONT

• (will be shipped to orders with ship-to states that require front license plate)

TIRES, LT275/70R18E ALL-TERRAIN, BLACKWALL

• (STD)

SIRIUSXM RADIO

• enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music
• plus sports
• news and entertainment. Plus listening on the SiriusXM app
• online and at home on compatible connected devices is included
• so you'll hear the best SiriusXM has to offer
• anywhere life takes you. Welcome to the world of SiriusXM.

GVWR, 11,500 LBS. (5216 KG) WITH SINGLE REAR WHEELS

• (STD)

SINGLE REAR WHEELS

• (STD)

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM, 7" DIAGONAL COLOR TOUCHSCREEN, AM/FM STEREO.

• Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• wired Apple CarPlay and Android Auto capable. (STD)

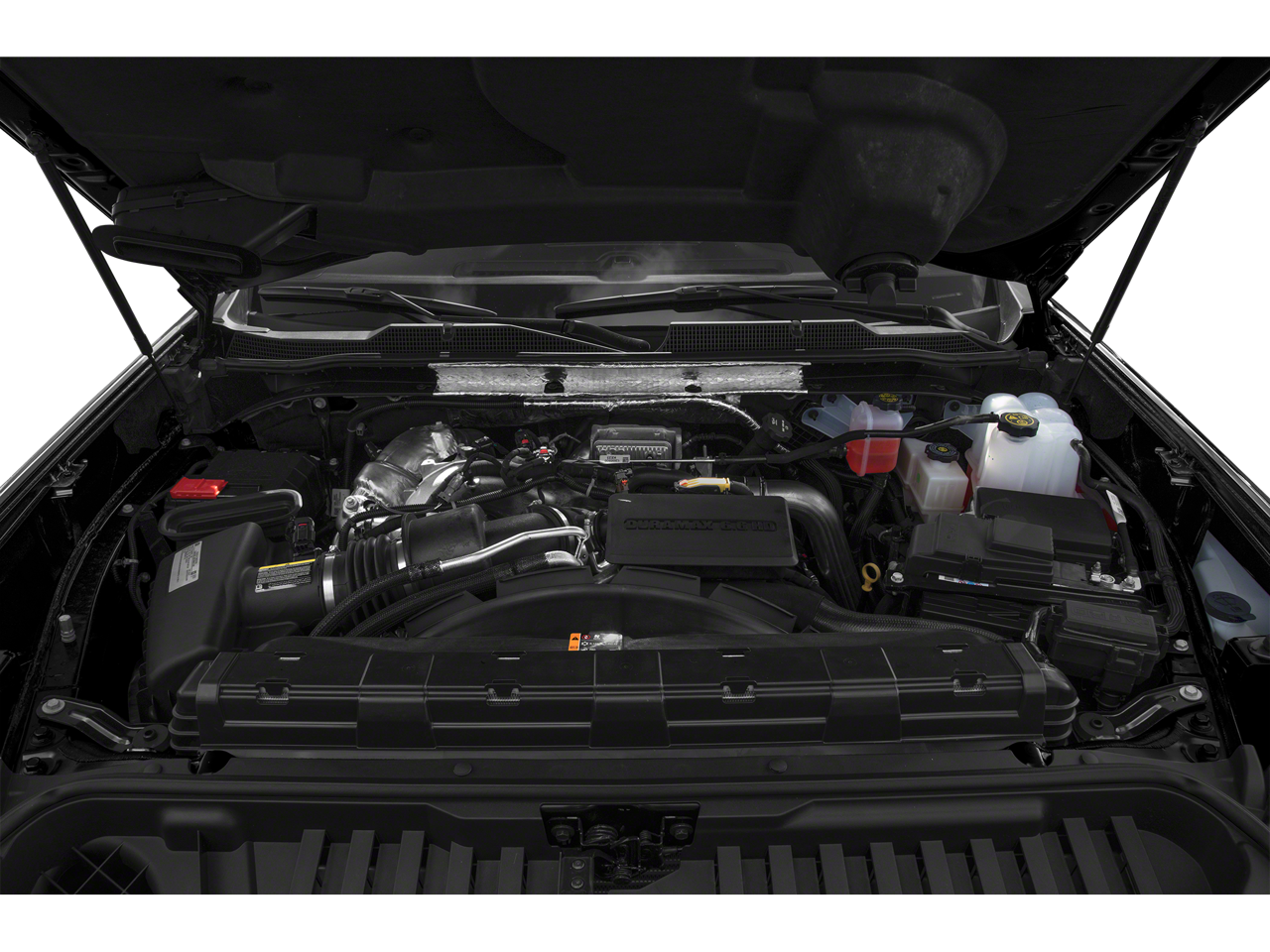

ENGINE, 6.6L V8 WITH DIRECT INJECTION AND VARIABLE VALVE TIMING, GASOLINE

• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

• WHEELS 18 (45.7 CM) PAINTED STEEL (STD)
• PICKUP BED DELETE includes capped fuel fill (SFW) Back-up alarm calibration (9J4) rear bumper delete (9L3) spare tire delete and spare tire carrier delete.
• SKID PLATES protect the oil pan front axle and transfer case
• POWER OUTLET INSTRUMENT PANEL 120-VOLT (400 watts shared with (KC9) bed mounted power outlet)
• SNOW PLOW PREP/CAMPER PACKAGE includes (KW5) 220-amp alternator includes increased front GAWR on Heavy Duty models (NZZ) skid plates (transfer case and oil pan) pass through dash grommet hole and roof emergency light provisions.
• DEFOGGER REAR-WINDOW ELECTRIC
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY (STD)
• MIRRORS OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED UPPER GLASS lower convex mirrors integrated turn signals manual folding/extending (extends 3.31 [84.25mm])
• BUMPER FRONT CHROME
• REAR CAMERA KIT Kit includes camera fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com
• GLASS DEEP-TINTED
• TIRE SPARE LT275/70R18 ALL-TERRAIN BLACKWALL (STD)
• UPFITTER SWITCH KIT (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE
• TRAILER BRAKE CONTROLLER INTEGRATED
• JET BLACK VINYL SEAT TRIM
• SEATS FRONT 40/20/40 SPLIT-BENCH with upper covered armrest storage with fixed lumbar (STD)
• SUMMIT WHITE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• BUMPER REAR DELETE
• REMOTE KEYLESS ENTRY with 2 transmitters
• CRUISE CONTROL ELECTRONIC with set and resume speed steering wheel-mounted
• WI-FI HOTSPOT CAPABLE
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• LICENSE PLATE KIT FRONT (will be shipped to orders with ship-to states that require front license plate)
• TIRES LT275/70R18E ALL-TERRAIN BLACKWALL (STD)
• SIRIUSXM RADIO enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the SiriusXM app online and at home on compatible connected devices is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.
• ALTERNATOR 220 AMPS
• GVWR 11 500 LBS. (5216 KG) WITH SINGLE REAR WHEELS (STD)
• SINGLE REAR WHEELS (STD)
• WT CONVENIENCE PACKAGE includes (AQQ) Remote Keyless Entry (QT5) EZ Lift power lock and release tailgate (AKO) tinted windows (C49) rear-window defogger (K34) cruise control (DBG) power trailer mirrors with heated upper glass and manual extending/folding
• REAR AXLE 3.73 RATIO
• AUDIO SYSTEM CHEVROLET INFOTAINMENT 3 SYSTEM 7 DIAGONAL COLOR TOUCHSCREEN AM/FM STEREO. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices voice command pass-through to phone wired Apple CarPlay and Android Auto capable. (STD)
• ENGINE 6.6L V8 WITH DIRECT INJECTION AND VARIABLE VALVE TIMING GASOLINE (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Daytime Running Lights
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Vinyl Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Windows
• Power Door Locks
• Power Outlet
• MP3 Capability
• Auxiliary Audio Input
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 7250
• Curb Weight - Front (lbs): 4041
• Curb Weight - Rear (lbs): 3121
• Gross Vehicle Weight Rating Cap (lbs): 11500
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16410
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4102
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Short/Long Arm w/Torsion Bars
• Suspension Type - Rear: 3-Stage Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QF6
• Rear Tire Order Code: QF6
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/70R18
• Rear Tire Size: LT275/70R18
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Size (in): 18 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 57.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 172
• Length, Overall (in): - TBD -
• Length, Overall (in): 266
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 80.67
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 11.14
• Ground Clearance, Rear (in): 11.14
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Chassis Cab
• Body Style: Crew Cab Pickup
• Body Code: ZW9
• Body Code: E63
